H2X-ECOSYSTEMS is an integrator and manufacturer of customized energy solutions.
H2X-ECOSYSTEMS designs and deploys turnkey hydrogen energy solutions that enable industrial companies to secure their energy supply, reduce emissions, and gain greater energy independence.
How Our Ecosystems Work ?

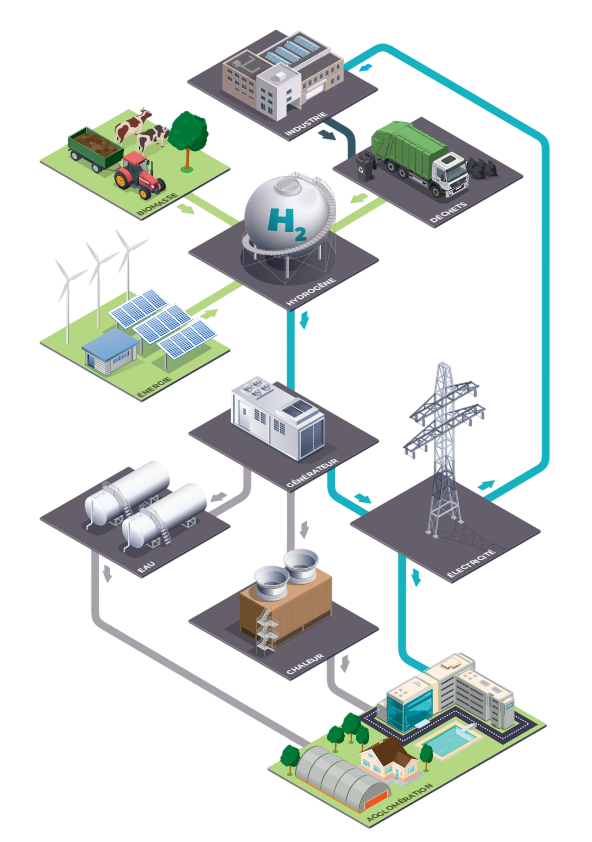

H2X-ECOSYSTEMS designs solutions inspired by the principles of the symbiotic economy, which aims to produce, store, and share energy as close as possible to its point of use. Our ecosystems are based on an integrated approach that values local resources while ensuring a sustainable and secure energy supply.
Our ecosystems operate through an energy-node logic. Hospitals, schools, ports, or residential buildings become strategic hubs integrated into the ecosystem. Each infrastructure is capable of producing, storing, and redistributing energy according to demand. This architecture enhances resilience, ensures service continuity, and optimizes the overall performance of the network.

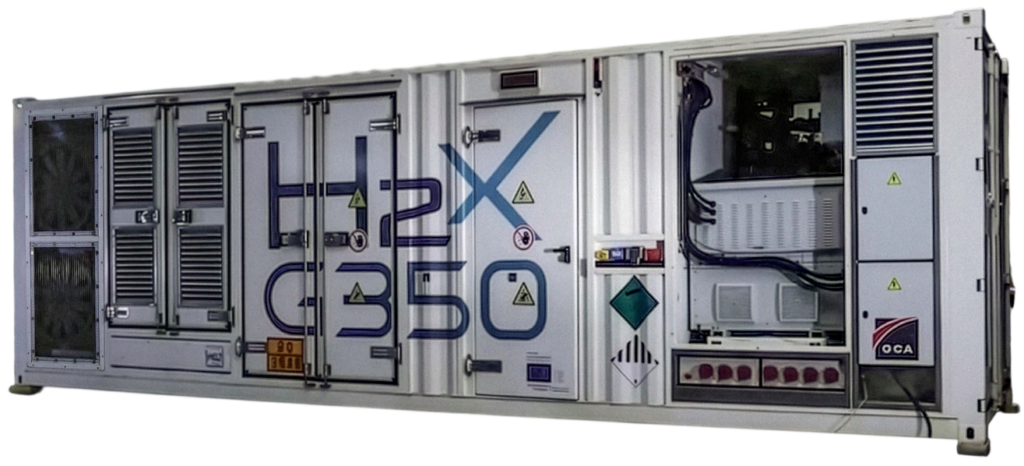

H2X G350
High-power autonomous generator
for stationary applications – 350 kVA
9000 x 2500 x 2900 mm
< 16 kg/h
22/44 VDC TO 44/120 VDC
USE OF 1 TO 4 MODULES IN PARALLEL
FORCED CONVECTION AIR COOLING
-5°C to 40°C
18 t
BATTERIES
FUEL CELL
SOLAR FARM CONNECTOR (up to 200 deployable solar panels)
HEAT EXCHANGER CONNECTOR (up to 210 L/min – Pressure: 3 bar Max. temperature: 65°C)
AIR CONDITIONING AND TRANSFORMER Connection to any type of grid
CONTROL STATION
H2X G350
High-power autonomous generator
for stationary applications – 350 kVA
22/44 VDC TO 44/120 VDC
USE OF 1 TO 4 MODULES IN PARALLEL
FORCED CONVECTION AIR COOLING
9000 x 2500 x 2900 mm
< 16 kg/h
-5°C to 40°C
18 t
BATTERIES
FUEL CELL
SOLAR FARM CONNECTOR (up to 200 deployable solar panels)
HEAT EXCHANGER CONNECTOR (up to 210 L/min – Pressure: 3 bar Max. temperature: 65°C)
AIR CONDITIONING AND TRANSFORMER Connection to any type of grid
CONTROL STATION

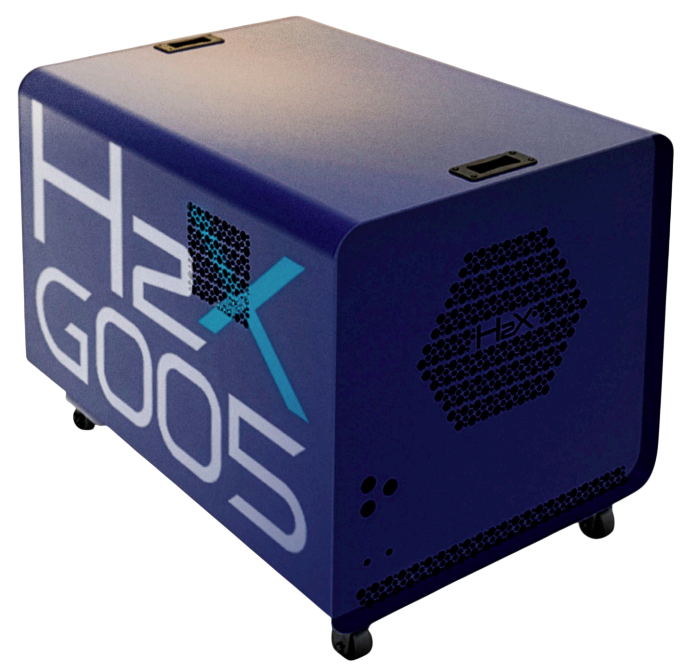

G005/G010 5-10kW Generator
975 x 680 x 770 mm
350 g/h
220V / 10KW MOBILE GENERATOR
FOOD FOR SMALL INFRASTRUCTURES
BUILDING AND PUBLIC WORKS INDUSTRY
200 kg
5 kW (F005)
10 bar
-5°C à 45°C
< 79 db
10 kWh
IP 54
TANKS Refueling in 3 min 2 removable hydrogen tanks H2X T700 H2X T1000
Compatible with photovoltaic panels
G005/G010 5-10kW Generator
220V / 10KW MOBILE GENERATOR
FOOD FOR SMALL INFRASTRUCTURES
BUILDING AND PUBLIC WORKS INDUSTRY
975 x 680 x 770 mm
350 g/h
200 kg
5 kW (F005)
10 bar
-5°C to 45°C
< 79 db
10 kWh
IP 54
TANKS Refueling in 3 min 2 removable hydrogen tanks H2X T700 H2X T1000
Compatible with photovoltaic panels

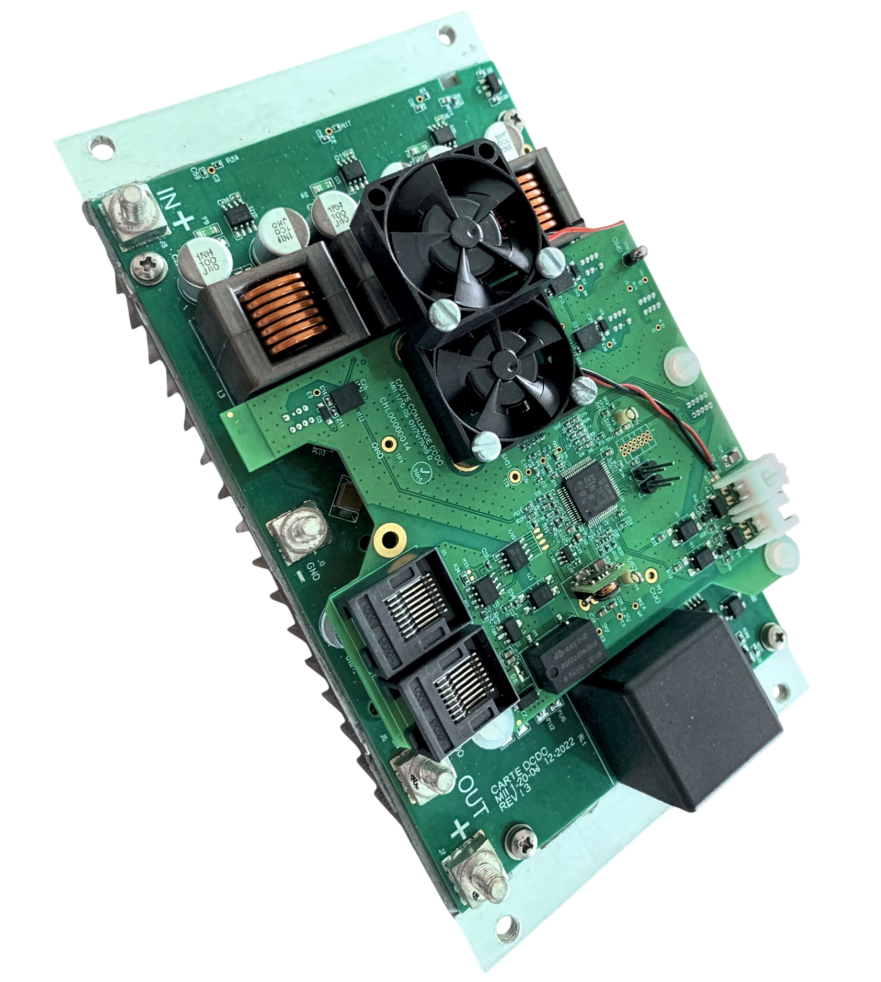

DC/DC 2.5kW Adjustable DC/DC converter
22/44 VDC TO 44/120 VDC
USING 1 TO 4 PARALLEL MODULES
FORCED CONVECTION AIR COOLING
188 x 100 x 75 mm
-20°C to 45°C
1,1 kg
2,5 kW
TROPICALIZED
CONNECTION
CAN Bus : CAN 2.0B – 1 MB/s
Power Terminals : M5
POWER SUPPLY
24 VDC/ 1 A
via RJ45 connector
INPUT
Input Voltage : 22VDC-44VDC
Max Input Current : 125 A
OUTPUT
Output Voltage : 44VDC-120VDC
Max Output Current : 60 A
Output Power : 0-2.5 kW
Efficiency : >95%
DC/DC 2.5kW Adjustable DC/DC converter
22/44 VDC TO 44/120 VDC
USING 1 TO 4 PARALLEL MODULES
FORCED CONVECTION AIR COOLING
CONNECTION
CAN Bus : CAN 2.0B – 1 MB/s
Power Terminals : M5
POWER SUPPLY
24 VDC/ 1 A
via RJ45 connector
INPUT
Input Voltage : 22VDC-44VDC
Max Input Current : 125 A
OUTPUT
Output Voltage : 44VDC-120VDC
Max Output Current : 60 A
Output Power : 0-2.5 kW
Efficiency : >95%
188 x 100 x 75 mm
-20°C to 45°C
1,1 kg
2,5 kW
TROPICALIZED

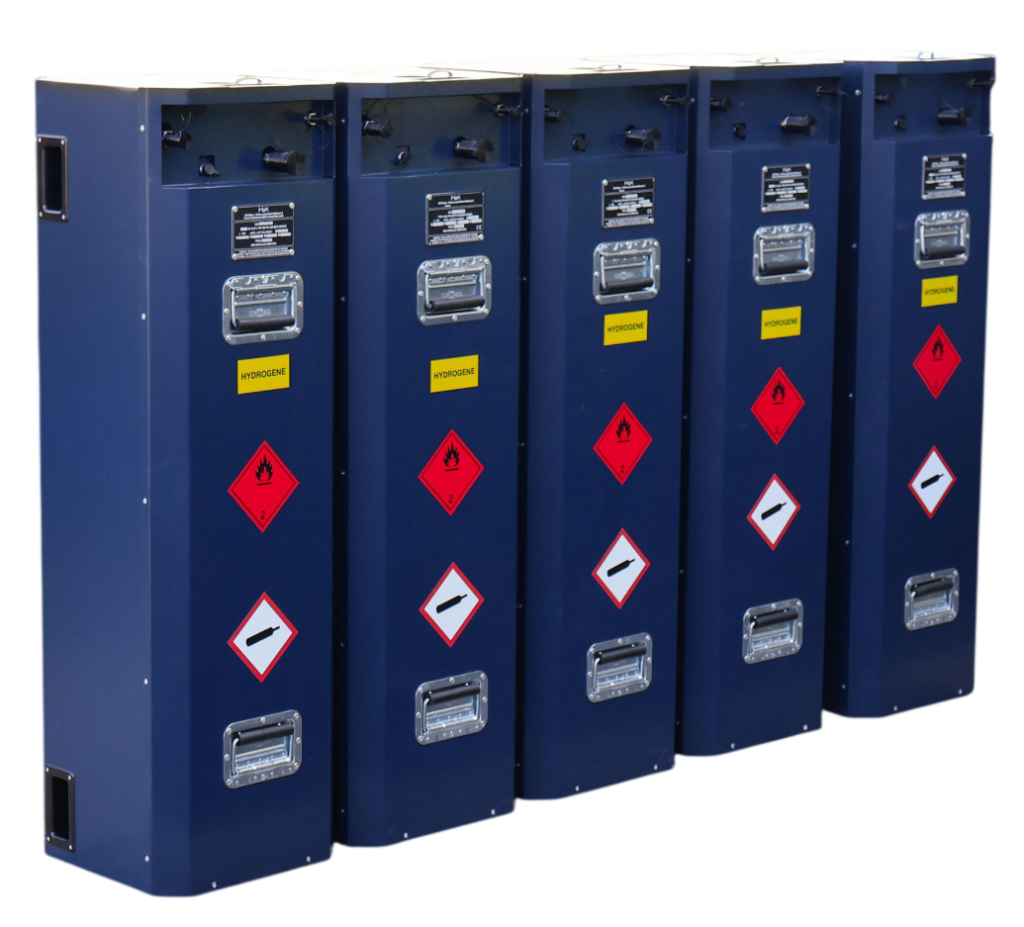

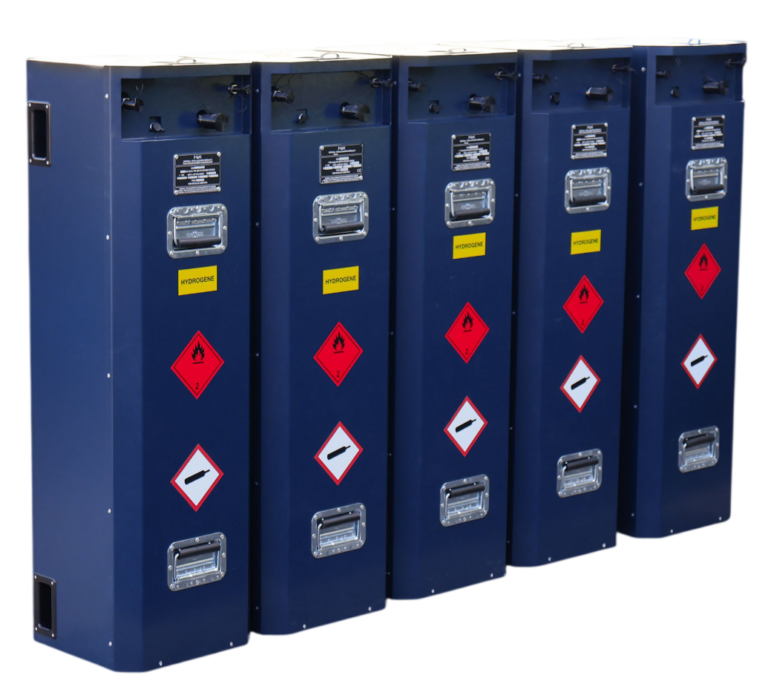

H2X-T1000 Removable and connected hydrogen tank
1220 x 360 x 360 mm
-40°C to 65°C
H2 STORAGE
PLUG AND PLAY
H2 TRACEABILITY AND BOTTLE
37 kg
46,5 L
20 - 300 bar
FILLING Fitting dimensions : ø G 1/8"
OUTLET Hydrogen outlet quick connector : ø 3/8" Hydrogen vent outlet (TPRD) : ø 3/8" Max. H2 flow rate : 8.8 g/s Outlet pressure : 10 bar
ACCESSORIES Transport wheels, ergonomic handle, security system with metal straps
RHYDE Measures position, pressure, temperature, and positioning system in real time
H2X-T1000 Removable and connected hydrogen tank
H2 STORAGE
PLUG AND PLAY
H2 TRACEABILITY AND BOTTLE
1220 x 360 x 360 mm
-40°C to 65°C
37 kg
46,5 L
20 - 300 bar
FILLING Fitting dimensions : ø G 1/8"
OUTLET Hydrogen outlet quick connector : ø 3/8" Hydrogen vent outlet (TPRD) : ø 3/8" Max. H2 flow rate : 8.8 g/s Outlet pressure : 10 bar
ACCESSORIES Transport wheels, ergonomic handle, security system with metal straps
RHYDE Measures position, pressure, temperature, and positioning system in real time

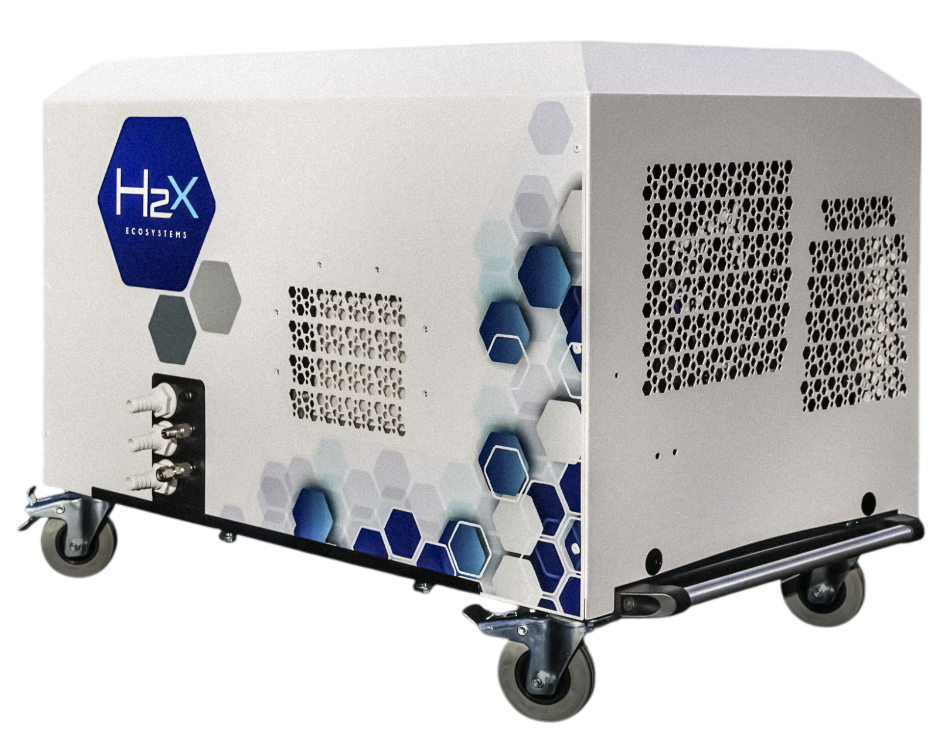

F005 Integrated fuel cell
700 x 750 x 450 mm
350 g/h
VOLTAGE 48-115 VDC
MOBILE USE
52 kg
5 kW
10 bar
-5°C to 45°C
< 79 db
IP 54
Integrated DC/DC
ENTRANCE H2X-T1000
External cooling system
Ergonomic handles
F005 Integrated fuel cell
VOLTAGE 48-115 VDC MOBILE USE
700 x 750 x 450 mm
350 g/h
52 kg
5 kW
10 bar
-5°C to 45°C
< 79 db
IP 54
Integrated DC/DC
ENTRANCE H2X-T1000
External cooling system
Ergonomic handles

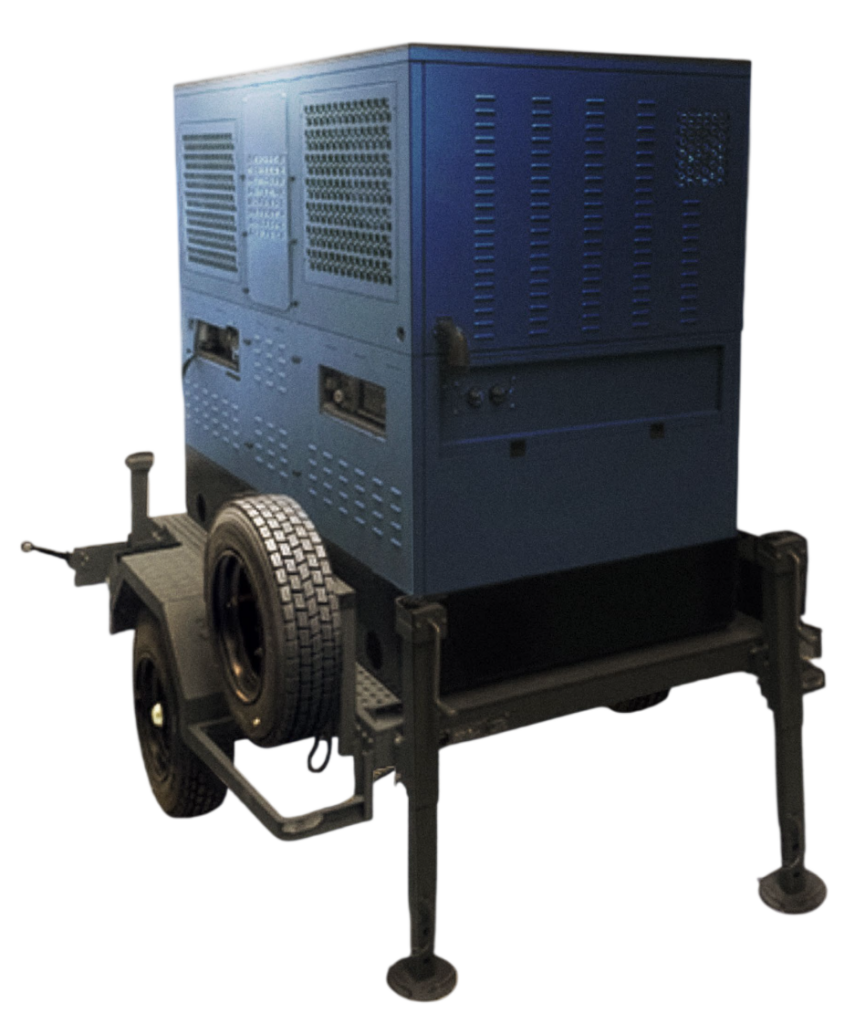

G015/G050 15kW-50kW Generator
2100 x 1200 x 2200 mm
1,2 to 2,5 kg/h
MOBILE GENERATOR
230V-400V
EVENT MANAGEMENT
CONSTRUCTION SITES
HOUSING & INFRASTRUCTURE
-33°C to 45°C
1560 kg*
< 79 dB
25 kWh
20 - 40 kW
8 - 10 bar
IP 54
COMPATIBLE WITH PHOTOVOLTAIC PANELS
TANKS Refuels in 2 min. 5 removable hydrogen tanks H2X-T1000
G015/G050 15kW-50kW Generator
MOBILE GENERATOR
230V-400V
EVENT MANAGEMENT
CONSTRUCTION SITES
HOUSING & INFRASTRUCTURE
2100 x 1200 x 2200 mm
1,2 to 2,5 kg/h
-33°C to 45°C
1560 kg*
< 79 dB
25 kWh
20 - 40 kW
8 - 10 bar
IP 54
COMPATIBLE WITH PHOTOVOLTAIC PANELS
TANKS Refuels in 2 min. 5 removable hydrogen tanks H2X-T1000

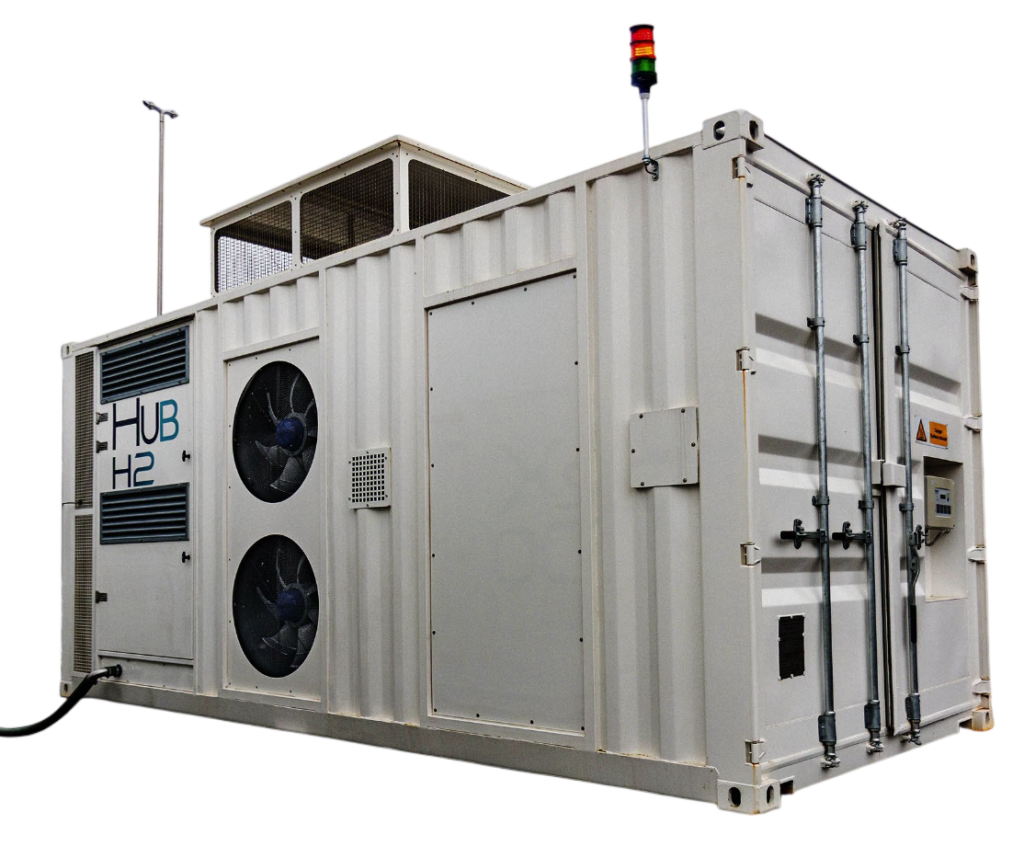

HUB H2 Hydrogen Generator ECOSYSTEMS 100-400kW Modular
6000 x 2500 x 2900 mm
6 kg/h - 24 kg/h
HIGH POWER DC GENERATOR
VEHICLE CHARGING STATION
ELIMINATION OF CONSUMPTION PEAKS
450/650 VDC OUTPUT
AND 0-650 A
6/11 tonnes
100 - 400 kW
8 - 10 bar
-5°C to 45°C
< 79 db
IP 54
H2 CIRCUIT Inlet pressure : 30 bar
PAC cooling
Electrical board + HMI
HUB H2 Hydrogen Generator ECOSYSTEMS 100-400kW Modular
HIGH POWER DC GENERATOR
VEHICLE CHARGING STATION
ELIMINATION OF CONSUMPTION PEAKS
450/650 VDC OUTPUT AND 0-650 A
6000 x 2500 x 2900 mm
6 kg/h - 24 kg/h
6/11 tonnes
100 - 400 kW
8 - 10 bar
-5°C to 45°C
< 79 db
IP 54
H2 CIRCUIT Inlet pressure : 30 bar
PAC cooling
Electrical board + HMI
